51 16 204 Removing and installing/replacing rear cup holder

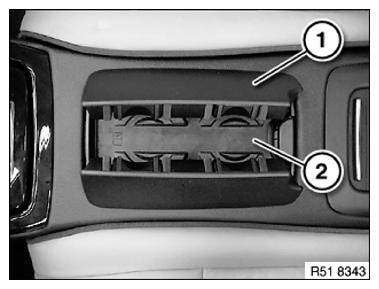

Open cup holder (1) and remove mat insert (2).

Fig 1: Identifying Cup Holder And Mat Insert

Courtesy of BMW OF NORTH AMERICA, INC.

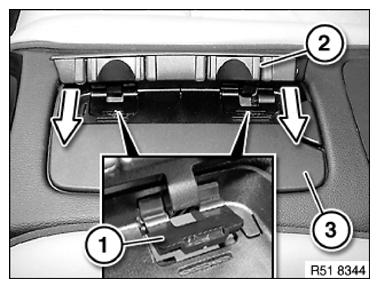

Lever out hinges (1).

Close lid (2) slightly and feed out completely with both hinges (1) in direction of arrow.

Repeat procedure on lid (3).

Fig 2: Identifying Lids And Hinges

Courtesy of BMW OF NORTH AMERICA, INC.

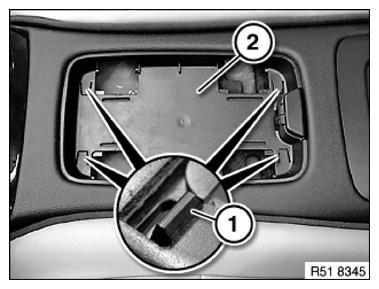

Reach through openings and release catches (1).

Remove housing (2).

Installation:

Catches (1) on housing (2) must not be damaged.

Fig 3: Identifying Catches On Housing

Courtesy of BMW OF NORTH AMERICA, INC.
