51 45... Removing and installing carrier for instrument panel

Necessary preliminary tasks

WARNING: To avoid injury, cover holder (1) on support tube (2).

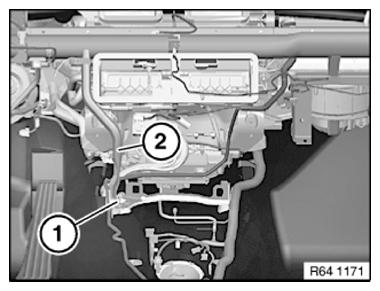

Fig 1: Identifying Support Tube And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Detach wiring harness (3) from support tube (2).

Release screws (1) of heater on support tube (2).

Tightening torque 64 11 6AZ .

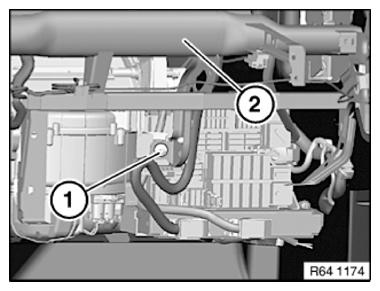

Fig 2: Identifying Support Tube, Wiring Harness, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) on right and left on support tube (2).

Tightening torque 51 71 5AZ .

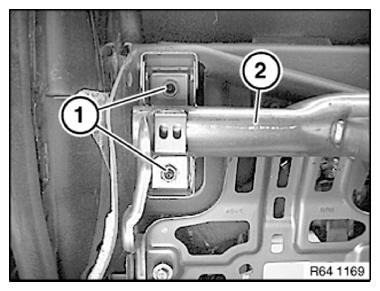

Fig 3: Identifying Support Tube And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) of heater on support tube (2).

Tightening torque 51 71 6AZ .

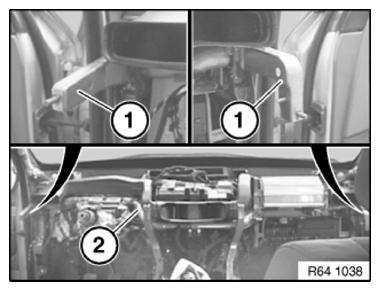

Fig 4: Identifying Heater Screw And Support Tube

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on support tube (2).

Tightening torque 51 71 5AZ .

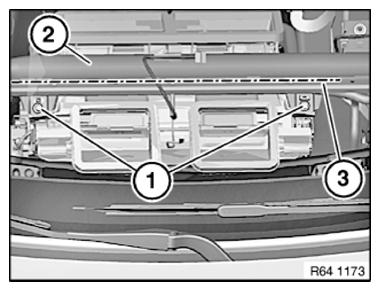

Fig 5: Identifying Support Tube And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on support tube (2) from bracket (3).

Tightening torque 51 71 4AZ .

Detach support tube (2) with a 2nd person helping and remove.

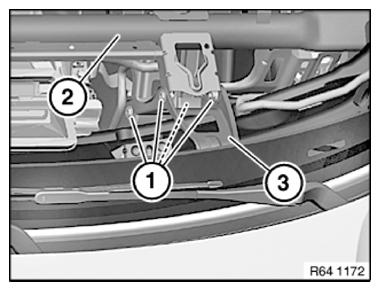

Fig 6: Identifying Support Tube, Bracket, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
