51 45 031 Replacing instrument panel trim

Special tools required:

00 9 340

Necessary preliminary tasks

Remove INSTRUMENT PANEL TRIM

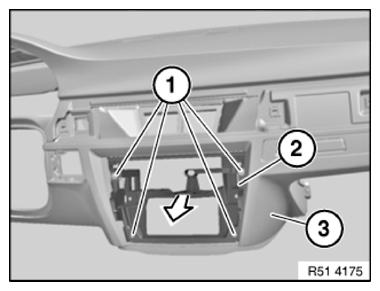

Release screws (1).

Remove center function carrier (2) from instrument panel trim (3).

Fig 1: Removing Center Function Carrier From Instrument Panel Trim

G09862148

Courtesy of BMW OF NORTH AMERICA, INC.

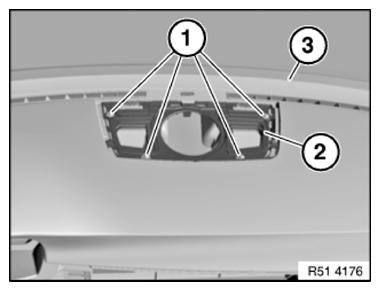

Release screws (1).

Remove speaker receptacle (2) from instrument panel trim (3).

Fig 2: Identifying Speaker Receptacle, Instrument Panel Trim And Screws

G09862149

Courtesy of BMW OF NORTH AMERICA, INC.

Remove AIRBAG MODULE ON PASSENGER SIDE .

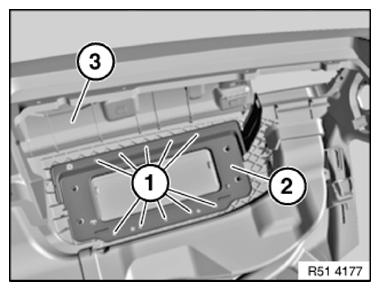

Release screws (1).

Remove holder for airbag module on passenger side (2) from instrument panel trim (3).

Fig 3: Identifying Passenger Airbag Module, Instrument Panel Trim, And Screws

G09862150

Courtesy of BMW OF NORTH AMERICA, INC.

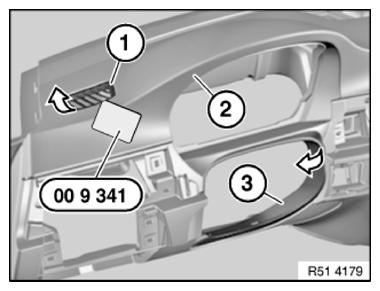

Unclip both side fresh-air grills (1) with special tool 00 9 340 in direction of arrow from instrument panel trim (2).

Unclip cover for steering column opening (3) in direction of arrow from instrument panel trim (2).

Fig 4: Removing Side Fresh-Air Grills Using Special Tool (00 9 340)

G09862151

Courtesy of BMW OF NORTH AMERICA, INC.

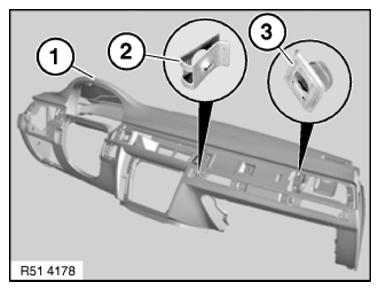

Remove all metal nuts (2) and clips (3) from instrument panel trim (1).

Fig 5: Identifying Instrument Panel Trim, Metal Nuts, And Clips

G09862152
