51 23 160 Removing and installing/replacing arrester hook on engine hood

Raise bonnet/hood lid.

Release screws (1) and remove arrester hook (2).

Tightening torque 51 23 1AZ .

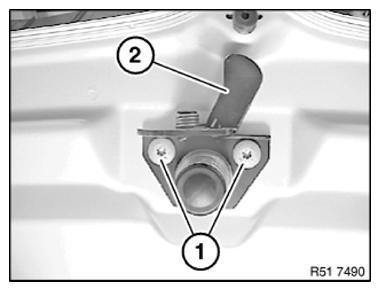

Fig 1: Identifying Arrester Hook And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
