51 71... Removing and installing/replacing rear middle tension strut (from 03/2007)
IMPORTANT:
Observe SAFETY INSTRUCTIONS
for raising the vehicle
Driving without the tension strut is not permitted!
Driving without the tension strut is not permitted!

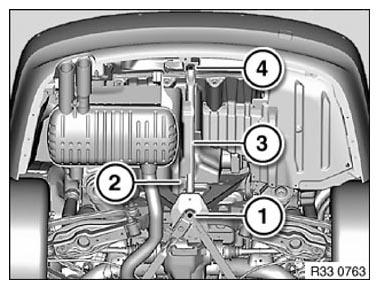

Release bolts (1, 2, 4) and remove tension strut (3).
Installation:
First fasten all bolts provisionally and then tighten down.
- Screw (1) M12x50
Tightening torque 51 71 22AZ .
- Screw (4) M8x25
Tightening torque 51 71 13AZ .
IMPORTANT:
Rear tension strut must be installed below the right tension strut!
