51 71 000 Removing and installing/replacing seal on front door, left or right

NOTE: Work shown on E92 way of example, deviations in detail are possible in other vehicle models.

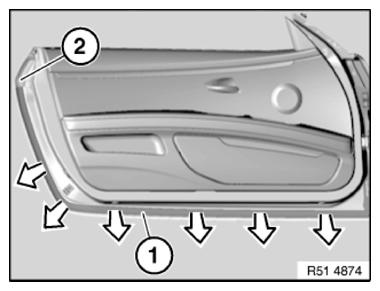

Unclip seal (1) in direction of arrow from front door.

Installation:

Make sure seal (1) is correctly seated on window guide (2).

Fig 1: Removing Front Door Seal And Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

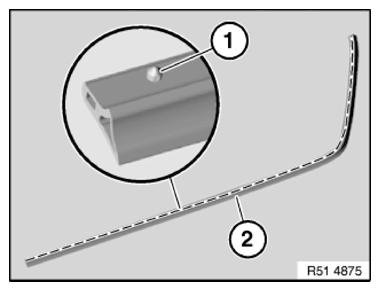

Clips (1) on seal (2) must not be damaged.

Fig 2: Identifying Clips On Seal

Courtesy of BMW OF NORTH AMERICA, INC.
