51 33... Slightly loosen power window regulator to remove door lock in left or right front door

Special tools required:

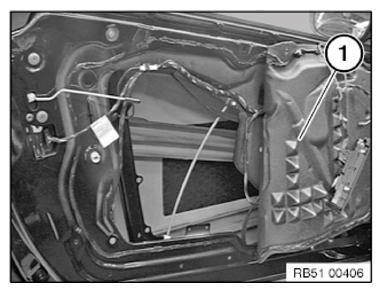

NOTE: To remove door lock, move rear section of sound insulation (1) toward center.

Necessary preliminary work

Partly remove SOUND INSULATION FROM FRONT DOOR .

Fig 1: Identifying Front Door Rear Section Sound Insulation
Courtesy of BMW OF NORTH AMERICA, INC.

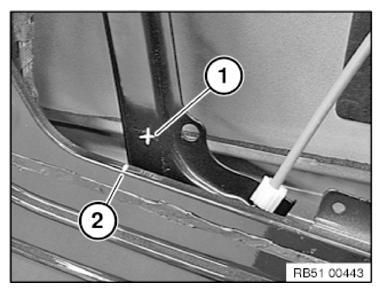

Mark measuring point on window lift rail (1) and inner door panel (2).

Fig 2: Identifying Measuring Point On Window Lift Rail And Inner Door Panel

Courtesy of BMW OF NORTH AMERICA, INC.

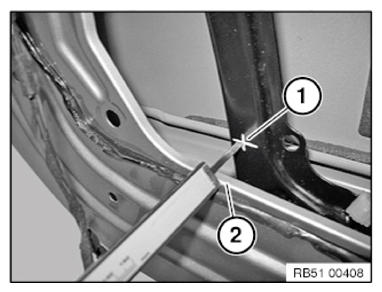

Determine distance between window lift rail (1) and inner door panel (2) and note down.

Fig 3: Identifying Distance Between Window Lift Rail And Inner Door Panel

Courtesy of BMW OF NORTH AMERICA, INC.

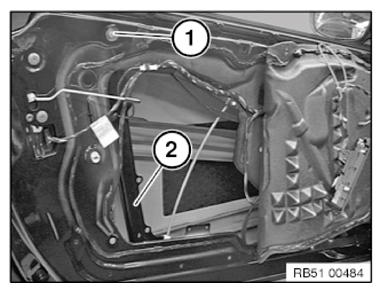

Slacken off nut (1) on window lift rail (2).

Installation note:

Nut (1) must again be correctly covered with adhesive film.

Tightening torque 51 33 1AZ .

Fig 4: Identifying Window Lift Rail Nut

Courtesy of BMW OF NORTH AMERICA, INC.

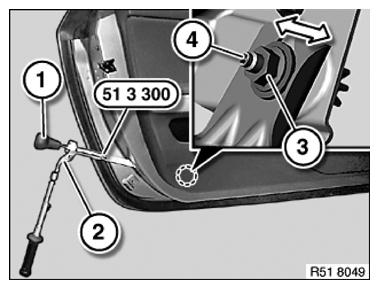

Remove dummy plug. Loosen nut (3) with special tool 51 3 300 .

Tightening torque 51 33 1AZ .

Installation note:

Reset the distance you noted down by turning knob (1) on special tool 51 3 300 .

Fig 5: Adjusting Pre-Tension Using Special Tool (51 3 300)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check distance between window lift rail (1) and inner door panel (2), repeat previous setting procedure if necessary.

Fig 6: Identifying Distance Between Window Lift Rail And Inner Door Panel

Courtesy of BMW OF NORTH AMERICA, INC.

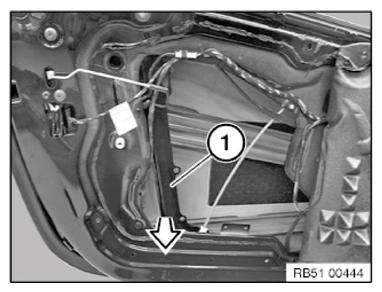

Detach rear part of window regulator at bottom and pull in direction of arrow.

Fig 7: Disconnecting Window Regulator Rear Part

Courtesy of BMW OF NORTH AMERICA, INC.

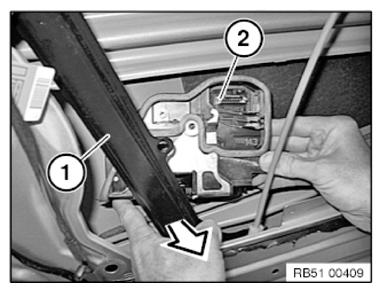

NOTE: The door lock can now be guided behind the window lift rail.

Fig 8: Guiding Door Lock Behind Window Lift Rail

Courtesy of BMW OF NORTH AMERICA, INC.
