51 33 000 Removing and installing (replacing) power window unit in left or right front door

Necessary preliminary tasks

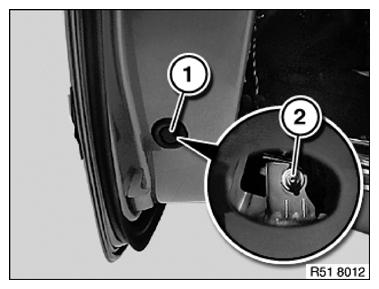

Lever out cover (1) and release nut (2).

Installation:

Nut is tightened down when door window glass is adjusted.

Tightening torque 51 33 1AZ .

Fig 1: Identifying Cover And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

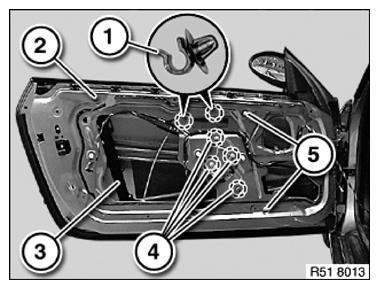

Release drive cable from clips (1).

Release nut (2) and feed out front power window rail (3).

Release nuts (4 and 5) and feed out rear power window rail.

Installation:

Clip drive cable correctly into clips (1).

Nut (2) must again be correctly covered with adhesive foil.

Tightening torque 51 33 1AZ .

Fig 2: Identifying Rear Power Window Rail, Nuts, And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

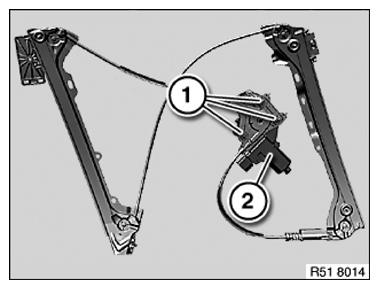

Release screws (1) and detach flat motor (2).

Tightening torque 67 62 1AZ .

Fig 3: Identifying Flat Motor Screws

Courtesy of BMW OF NORTH AMERICA, INC.
