51 21 280 Removing and installing/replacing door stop on left or right front door

Necessary preliminary tasks

NOTE: Graphics used come from the E87.

NOTE: Secure front door against falling closed.

Release screw (1).

Tightening torque 51 21 3AZ .

Unfasten screws (2).

Tightening torque 51 21 4AZ .

Remove seal (3).

Installation:

Seal (3) must not be damaged.

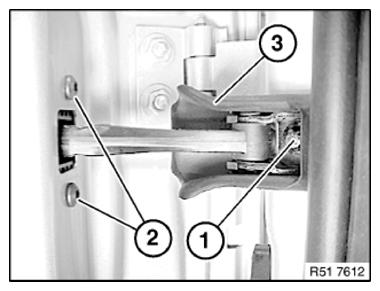

Fig 1: Identifying Screws And Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Remove door retainer (1) via cutout (2).

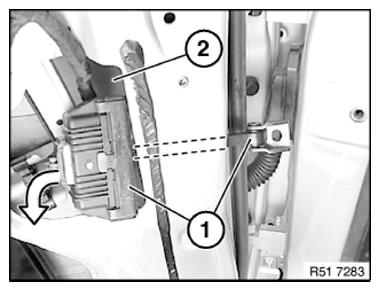

Fig 2: Removing Door Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of door retainer (3) must not be damaged:

Hinge
Thread

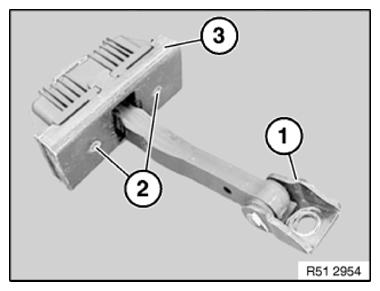

Fig 3: Identifying Door Retainer, Hinge And Thread
Courtesy of BMW OF NORTH AMERICA, INC.
