51 31... Removing and installing/replacing retaining strip for cowl panel cover

Necessary preliminary tasks

Remove COVER for cowl panel

IMPORTANT: Retaining strip (2) has an aluminium profile insert (1).
Carefully wind out retaining strip (2) (windscreen breakage).

4. Glue bead
5. Pinched butyl
6. Contact surfaces

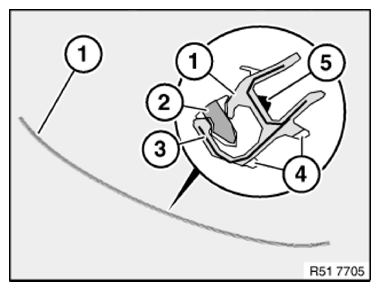

Fig 1: Identifying Retaining Strip, Insert, Glue Bead, Pinched Butyl, And Contact Surfaces
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean cutout.

Pay attention to center marking on retaining strip (1) and windscreen.

Insert positioner (2) for retaining strip (1) must be removed after it has been fitted on the windscreen but before the windscreen itself is installed.

Replacement of retaining strip without windscreen removal

If adhesive has managed to get onto retaining strip (1), this area must be cut out partially.

To facilitate installation, coat and body cutout with water.

Replacement of retaining strip with removed or new windscreen

Fit rubber frame (1).

3. Aluminum strip
4. Contact surfaces
5. Butyl

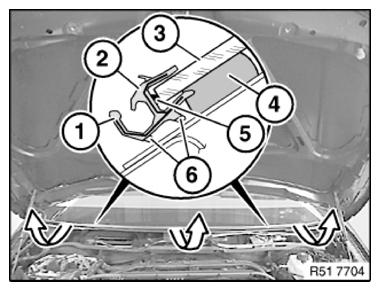

Fig 2: Identifying Retaining Strip, Positioner, Aluminum Strip, Contact Surfaces, And Butyl
