51 75 001 Removing and installing/replacing left or right underbody cover
NOTE:
Work shown on E90 by way of example, deviations in detail are possible in other models.

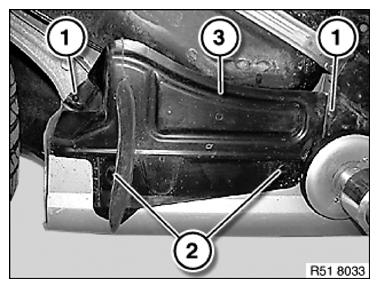

Release clips (1).
Release screws (2).
Remove underbody cover (3).
Installation:
Replaced damaged clips (1).
Make sure underbody cover (3) is correctly seated.
