51 14 011 Replacing rear BMW badge

Special tools required:

00 9 323

IMPORTANT: The NOTES on component bonding with double-sided adhesive tape serve as the basis for this repair instruction and must be observed without fail.
The BMW badge must be replaced after it is removed.

Removing badge

Heat BMW badge (1) with hot air blower and carefully lever out with special tool 00 9 323 .

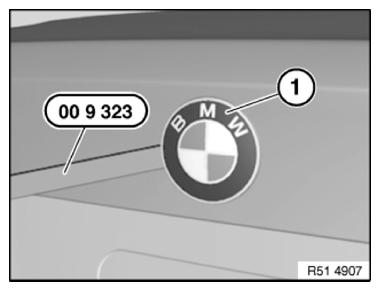

Fig 1: Removing BMW Badge

Courtesy of BMW OF NORTH AMERICA, INC.

Fitting badge

Installation note:

Grommets (1) must not be damaged.

Pull liner* off adhesive tape (2), position badge over guide pins (3) and press down firmly.

* Liner is the protective film on a new badge.

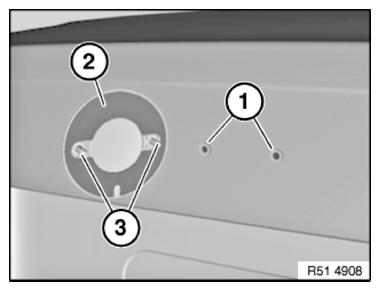

Fig 2: Identifying Guide Pins, Adhesive Tape, And Grommets

Courtesy of BMW OF NORTH AMERICA, INC.
