22 11 110 Replace left engine support arm (N20, B26)

Necessary preliminary tasks:

• Secure engine in INSTALLATION POSITION .
• Remove REINFORCEMENT PLATE .
• Remove CHARGE AIR DUCT .

Release screw (2).

Tightening torque 17 22 4AZ .

Release screws (1).

Tightening torque 22 11 3AZ

Remove engine support arm.

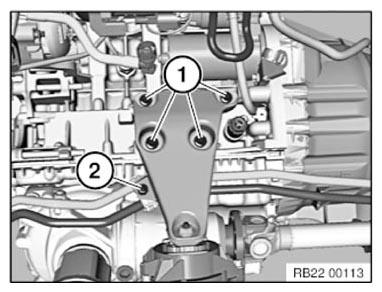

Fig 1: Identifying Engine Support Arm Screws

Courtesy of BMW OF NORTH AMERICA, INC.
