Mounting engine on assembly stand (N47 D20 O1)

Special tools required:

• 00 2 300
• 00 2 320
• 11 8 770

Necessary preliminary tasks:

• Remove engine.
• Remove engine support arm on left and right.

Prepare special tool 00 2 300 together with the special tool 00 2 320 .

Fig 1: Identifying Special Tools (00 2 300 And 00 2 320)

Courtesy of BMW OF NORTH AMERICA, INC.

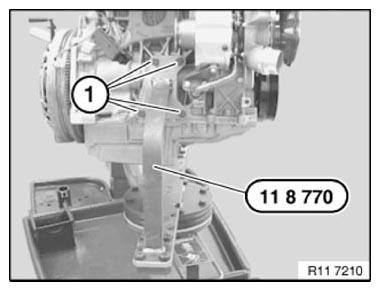

Secure special tool 11 8 770 on left to support on engine support arm with screws (1).

Fig 2: Identifying Engine Support Arm With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

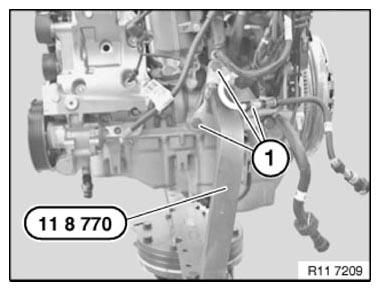

Secure special tool 11 8 770 on right to support on engine support arm with screws (1).

Fig 3: Identifying Engine Support Arm With Screws

Courtesy of BMW OF NORTH AMERICA, INC.
