63 25 004 Removing and installing/replacing auxiliary brake light
Special tools required:
When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

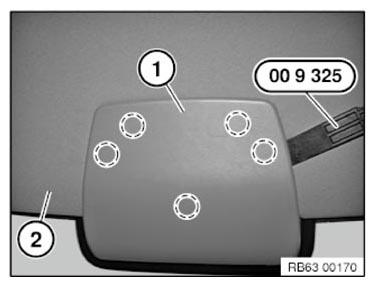

Unclip additional brake light (1) with special tool 00 9 325 at marked points from moulded roof liner (2).
Unlock associated plug connection and disconnect.
Remove additional brake light (1).
Installation note:
Make sure additional brake light (1) is correctly seated on moulded roof liner (2).
Installation note:

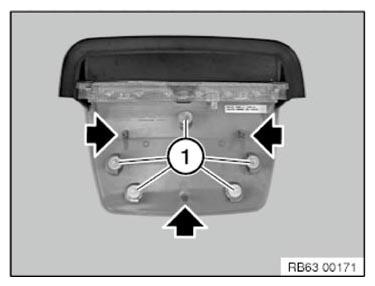

Clips (1) and guides (arrow) must not be missing or damaged.
