26 11... Overview (inserted propeller shaft)

WARNING: This page is about a different variant/trim than selected.

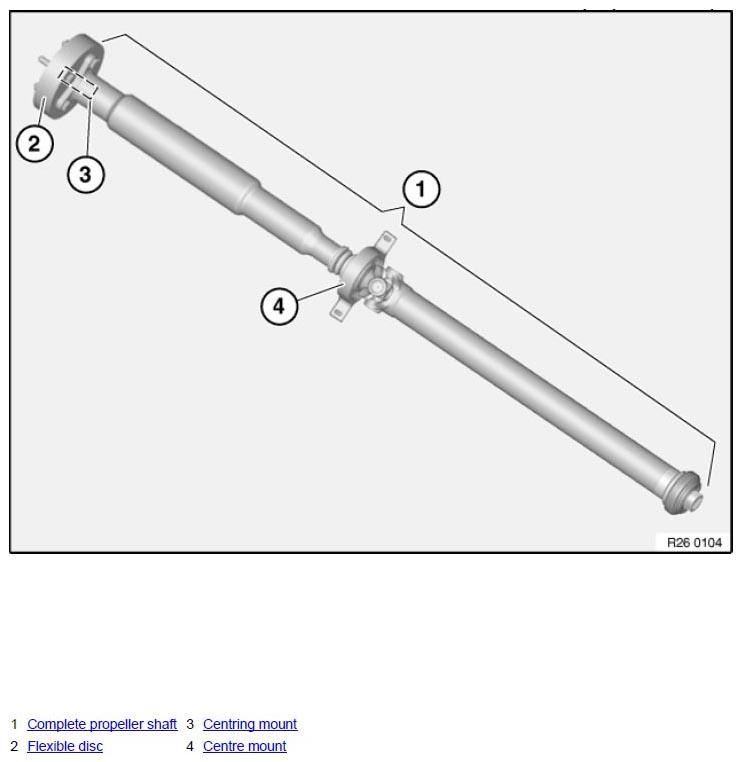

Fig 1: Overview (Inserted Propeller Shaft)
G06908103Courtesy of BMW OF NORTH AMERICA, INC.
  1. Complete propeller shaft
  2. Flexible disc
  3. Centering mount
  4. Centre mount
