22 11 110 Replacing left engine support arm (N52K)
WARNING: This page is about a different variant/trim than selected.
Necessary preliminary tasks
- Secure engine in INSTALLATION POSITION
- Remove underbody protection at front and rear

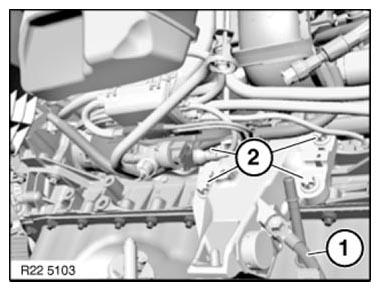

Release grounding strap (1) from engine support arm.
Unfasten screws (2).
Remove engine support arm.
Installation:
Aluminum screws/bolts must be replaced.
Tightening torque 22 11 3AZ
