22 11 100 Replacing right engine support arm (N52K)
WARNING: This page is about a different variant/trim than selected.
Necessary preliminary tasks
- Secure engine in INSTALLATION POSITION
- Remove front underbody protection

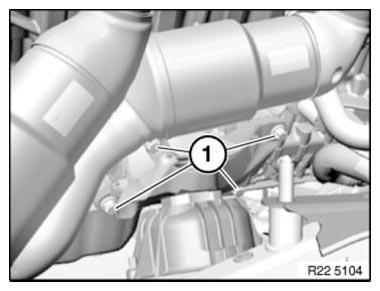

Release screws (1).
Remove engine support arm from engine.
Installation:
Aluminum screws/bolts must be replaced.
Tightening torque 22 11 3AZ
