18 00 020 Removing and installing complete exhaust system (N52K)

WARNING: This page is about a different variant/trim than selected.

WARNING: Scalding hazard!
Only perform this work after engine has cooled down.
Danger of injury!
Removal of the exhaust system must be carried out with the assistance of a second person.

Necessary preliminary tasks

Remove REINFORCEMENT PLATE from rear axle
Remove left TENSION STRUT on rear axle

Support exhaust system with special tool 31 2 220.

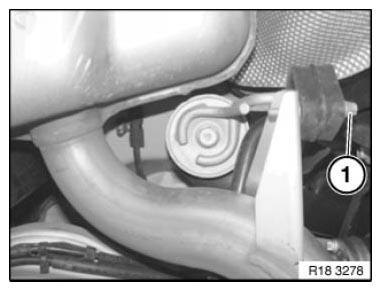

Fig 1: Support Exhaust System With Special Tool (31 2 220)

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Tightening torque 18 31 1AZ .

Remove holder (2).

Installation:

Replace seals.

Replace self-locking nuts.

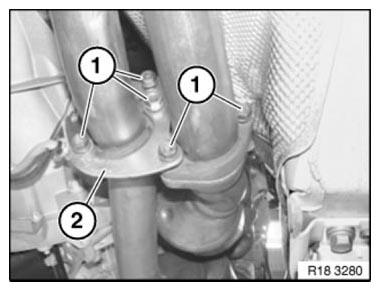

Fig 2: Identifying Nuts And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew screws (1) and (2).

Tightening torque 18 31 2AZ .

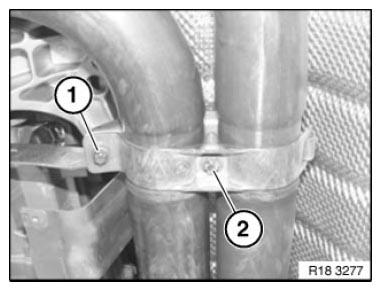

Fig 3: Identifying Bracket With Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on rubber mount.

Tightening torque 18 31 3AZ .

Fig 4: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 18 31 4AZ .

Lower and remove exhaust system with assistance of a second person.

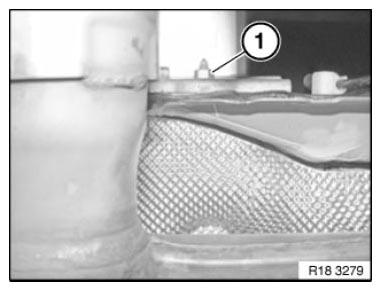

Fig 5: Identifying Slacken Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check rubber mount for damage.

If necessary, replace damaged rubber mounts.

Check exhaust system for leaks.
