13 72 001 Replacing air cleaner element (N52K)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks

Unlock retainers (1) at top and side on intake filter housing.

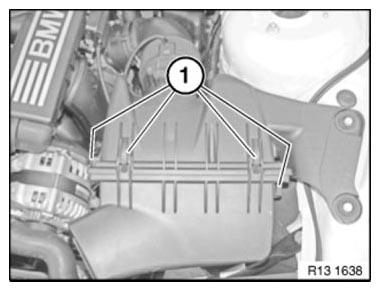

Fig 1: Identifying Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Remove front section of intake filter housing (1) towards top.

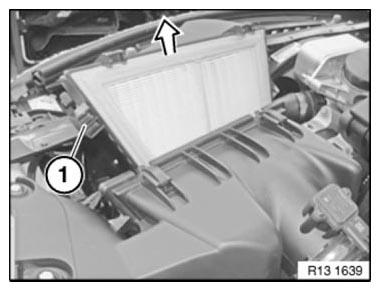

Fig 2: Removing Intake Filter Housing Front Section

Courtesy of BMW OF NORTH AMERICA, INC.

Replace air filter element (1).

Installation:

Clean intake filter housing from inside.

Make sure guide (2) is correctly seated in intake filter housing.

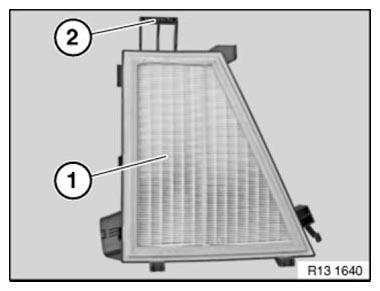

Fig 3: Identifying Air Filter Element And Guide

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Assemble engine.
