11 00 Removing and installing/replacing acoustic cover (N52K)

WARNING: This page is about a different variant/trim than selected.

Release screws (1).

Raise acoustic cover slightly and remove towards front.

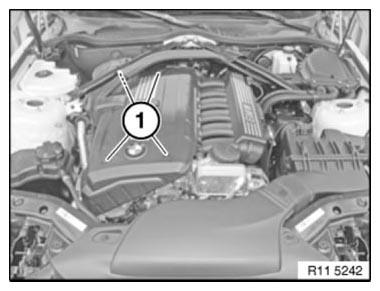

Fig 1: Identifying Acoustic Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.
