12 51 001 Replacing wiring harness section for engine (N52K)

WARNING: This page is about a different variant/trim than selected.
IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Release bolts along line (1).

Tightening torque 12 90 1AZ .

Remove electronics box cover.

Fig 1: Identifying Electronic Box Cover Mounting Bolts
G06905152Courtesy of BMW OF NORTH AMERICA, INC.

Unlock battery positive lead (1), detach and lay to one side.

Release locks (2) in direction of arrows and pull control unit upwards slightly.

Fig 2: Opening Control Unit Locks
G06905153Courtesy of BMW OF NORTH AMERICA, INC.

Pull control unit (1) upwards slightly until plug (2) can be released from control unit in direction of arrow.

Unlock plug (2) and detach from control unit (1).

Fig 3: Pulling Control Unit Upwards
G06905154Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and detach all plugs from engine wiring harness in electronics box (1).

Unclip rubber grommet hold-down devices (2) and (3) and release engine wiring harness from electronics box.

Installation:

Make sure rubber grommets are correctly seated (watertightness).

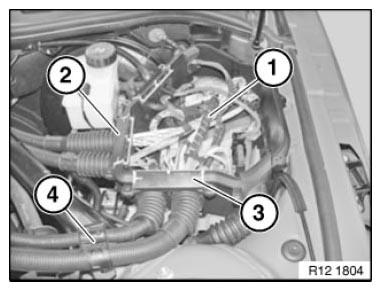

Fig 4: Identifying Electronic Box With Rubber Grommet Hold Down Device And Plugs
G06905200Courtesy of BMW OF NORTH AMERICA, INC.

Long plug:

Press in retaining lugs and withdraw lock (1) in direction of arrow from plug housing.

Fig 5: Removing Locks By Pressing Retaining Tabs
G06905201Courtesy of BMW OF NORTH AMERICA, INC.

Press locking tabs (1) in direction of arrow and pull contact carrier (2) out of housing.

Fig 6: Pressing Locking Tab
G04748628Courtesy of BMW OF NORTH AMERICA, INC.

Press locking tab (1) in direction of arrow and pull contact carrier (2) out of housing.

Fig 7: Pressing Locking Tab
G04748640Courtesy of BMW OF NORTH AMERICA, INC.

Unlock locking tabs (1) in direction of arrow and pull contact carrier (2) out of housing.

Fig 8: Opening Locking Tabs
G04748629Courtesy of BMW OF NORTH AMERICA, INC.

Short plug:

Press in retaining lugs (1) and withdraw lock (2) in direction of arrow from plug housing.

Fig 9: Removing Locks From Plug Housing
G04777974Courtesy of BMW OF NORTH AMERICA, INC.

Press locking tabs (1) in direction of arrow and pull contact carrier (2) out of housing.

Fig 10: Pressing Locking Tab
G04748628Courtesy of BMW OF NORTH AMERICA, INC.

Unlock locking tabs (1) in direction of arrow and pull contact carrier (2) out of housing.

Fig 11: Opening Locking Tabs
G04748629Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cable duct upper section (1) and expose wiring harnesses.

Fig 12: Locating Wiring Harness In Cable Duct Upper Section
G06905208Courtesy of BMW OF NORTH AMERICA, INC.

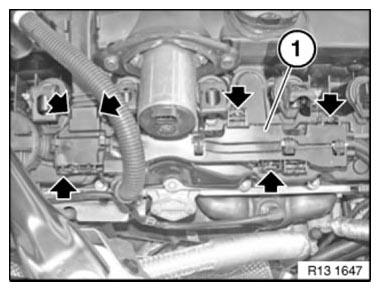

Unclip cable duct (1) and remove from cylinder head cover.

Fig 13: Unclipping Cable Duct
G06907763Courtesy of BMW OF NORTH AMERICA, INC.

Unclip plug connection (1) from holder (2) and disconnect.

Unclip wiring harness from holder (2).

Unclip holder (2) from fuel rail and remove.

Fig 14: Identifying Plug Connection And Holder
G04725723Courtesy of BMW OF NORTH AMERICA, INC.

Detach connector strip (2) in direction of arrow.

Do not  remove fuel rail (3) and fuel line (1).

Fig 15: Removing Connector Strip With Fuel Rail And Fuel Line
G04725726Courtesy of BMW OF NORTH AMERICA, INC.
WIRING HARNESS REPLACEMENT PROCEDURE

Work step Note
Unlock plug connections on control sensors and disconnect
Unlock plug on alternator and disconnect
Unlock plug connection on knock sensors and disconnect
Unlock plug on crankshaft sensor and disconnect
Unlock plug on starter motor and disconnect
Unlock plug on throttle valve assembly and disconnect
Unlock plug connections on monitoring sensors and disconnect
Unlock plug on oil condition sensor and disconnect
Unlock plug on tank vent valve and remove
Unlock plug on transmission and disconnect
Unlock plug on air-mass meter and disconnect
Unlock plug on differential-pressure sensor and disconnect
Unlock plug on intake system servomotors and disconnect
Unlock plug on eccentric shaft sensor and disconnect
Unlock plug on solenoid valves and disconnect
Unlock plug on coolant temperature sensor and disconnect
Unlock plug on oil pressure sensor and disconnect
Disconnect connector strip on fuel injectors
Unlock plug on A/C compressor and disconnect
Unlock plug on coolant thermostat and disconnect
Unlock plug on hydraulic valve and disconnect
Unlock plug on coolant pump and disconnect
Release earth connection and remove
Tightening torque 12 90 3AZ .


Release wiring harness if necessary from clips and retainers

Feed out wiring harness and remove.

Installation:

Check wiring harness routing.

Check plug connections for correct seating.

NOTE: Check stored fault messages.
clear fault memory.
