12 42 500 Replacing battery positive lead between starter, alternator and battery positive terminal (N52K)

Necessary preliminary tasks

• Read out fault memory of DME control unit
• Switch off ignition
• Disconnect BATTERY NEGATIVE LEAD
• Remove INTAKE AIR MANIFOLD

Open cover.

Slacken nut (1).

Tightening torque 12 42 3AZ .

Remove battery positive lead (2) from battery positive terminal.

Fig 1: Identifying Battery Cable And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) on starter.

Tightening torque 12 42 2AZ .

Disconnect battery positive lead from starter.

Release nut (2) on alternator.

Tightening torque 12 42 1AZ .

Release battery positive lead from retainer (3), feed out and remove.

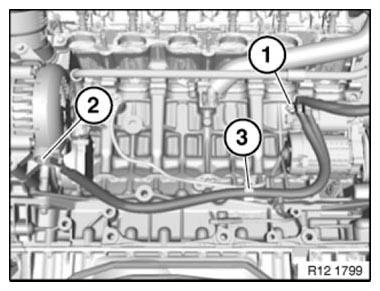

Fig 2: Identifying Nut On Starter And Alternator

Courtesy of BMW OF NORTH AMERICA, INC.
