12 14 550 Replacing control unit (DME) (N52K)

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)

Necessary preliminary tasks:

IMPORTANT: Follow instructions for REMOVING AND INSTALLING CONTROL UNITS

Replacement:

IMPORTANT: It is absolutely essential to read out the fault memory with the BMW diagnosis system and to create a fault memory printout.

Switch off ignition.

Release bolts along line (1).

Tightening torque 12 90 1AZ .

Remove electronics box cover.

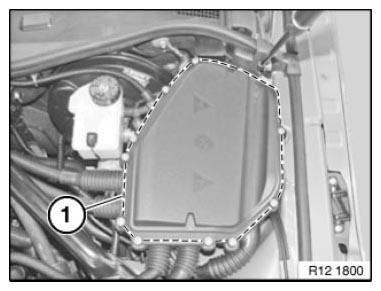

Fig 1: Identifying Electronic Box Cover Mounting Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock battery positive lead (1), detach and lay to one side.

Release locks (2) in direction of arrow and pull control unit upwards slightly.

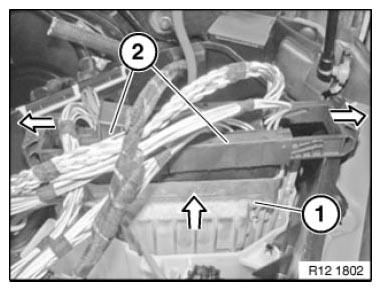

Fig 2: Opening Control Unit Locks

Courtesy of BMW OF NORTH AMERICA, INC.

Pull control unit (1) upwards slightly until plug (2) can be released from control unit in direction of arrow.

Unlock plug (2) and detach from control unit (1).

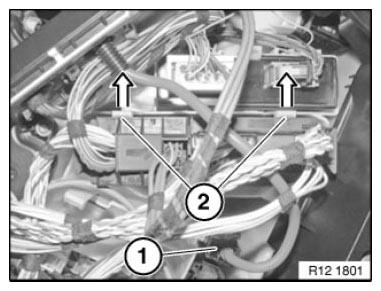

Fig 3: Pulling Control Unit Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

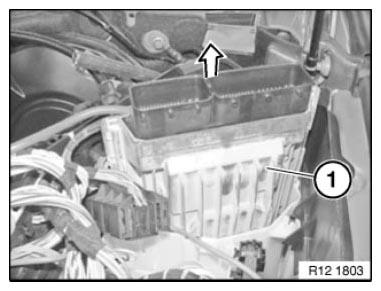

Lift out control unit (1).

Fig 4: Lifting Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault messages.
clear fault memory.
