00 11... Checking/topping up oil level in rear differential
WARNING: This page is about a different variant/trim than selected.
WARNING:
DANGER OF POISONING if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
IMPORTANT:
Risk of damage!
To avoid serious damage to the rear differential, it is essential to use REAR AXLE - OPERATING FLUIDS in the rear differential.
To avoid serious damage to the rear differential, it is essential to use REAR AXLE - OPERATING FLUIDS in the rear differential.

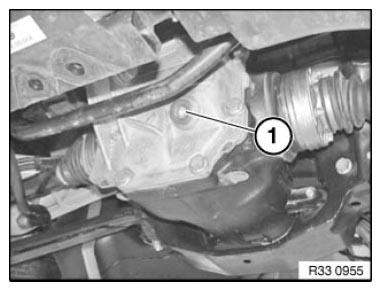

Undo oil filler plug (1).
Tightening torque 33 11 2AZ .
Check oil level.
If necessary, pour in rear differential oil up to lower edge of opening for oil filler plug (1).
Installation:
Replace oil filler plug (1) with O-ring.
