Bush Minimum set: Mechanical tools MW

WARNING: This page is about a different variant/trim than selected.

NOTE: (Assembly bushes with case) For installing pistons of 85 mm diameter (urgently required for pistons with U-Flex ring)

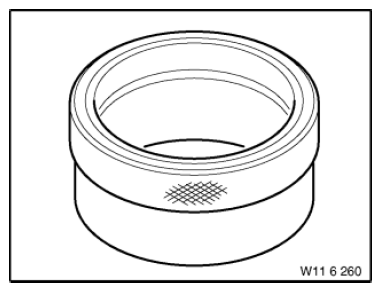

Fig 1: Identifying Bush (116260)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

4 = 0493142 Bush

NOTE: (Assembly bush) Diameter 85.50 mm, stage 2

1 = 0493139 Bush

NOTE: (Assembly bush) Diameter 85.00 mm

2 = 0493140 Bush

NOTE: (Assembly bush) Diameter 85.08 mm, repair

3 = 0493141 Bush

NOTE: (Assembly bush) Diameter 85.25 mm, stage 1

9 = 0493323 Case

NOTE: (Case) For storing assembly bushes, gauge 11 6 270 and lever dial gauge 11 6 250
