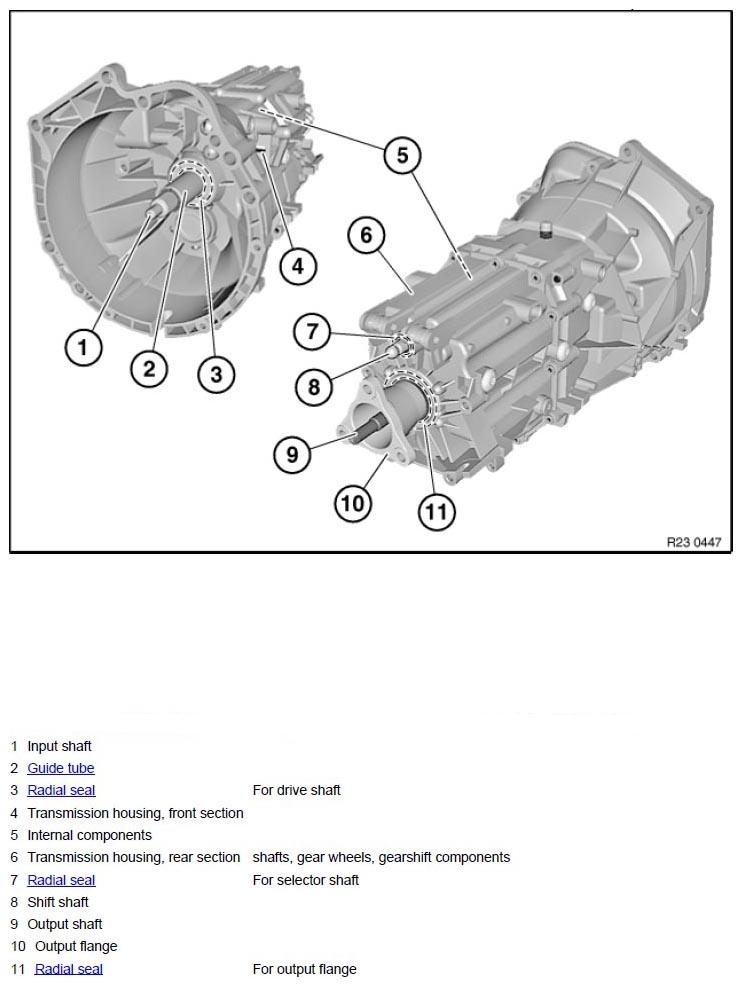

23 00... Overview of transmission housing (GS6-17BG)
WARNING: This page is about a different variant/trim than selected.
0 General information Complete transmission, oil change, transmission designations
- Input shaft
- Guide tube
- Radial seal For drive shaft
- Transmission housing, front section
- Internal components
- Transmission housing, rear section shafts, gear wheels, gearshift components
- Radial seal For selector shaft
- Shift shaft
- Output shaft
- Output flange
- Radial seal For output flange
