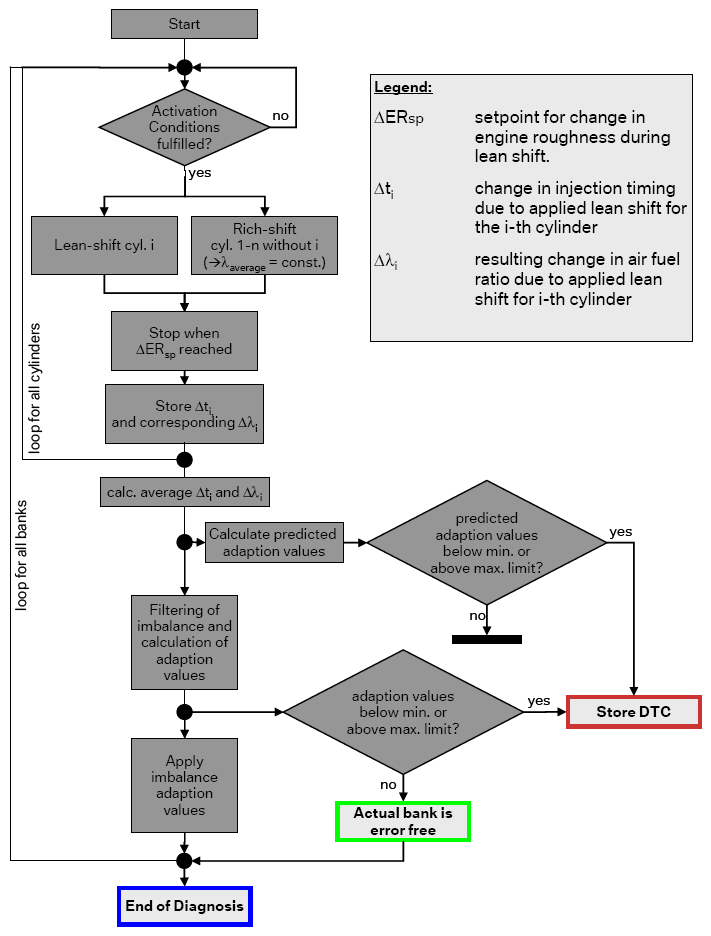

Home >> BMW >> 2011 >> X6 M >> Repair and Diagnosis >> Engine Performance >> Testing & Diagnosis >> Self Diagnosis - Theory & Operation (N63 & S63) >> 1.6 Fuel System Monitoring >> 1.6.2 Cylinder Imbalance Monitoring >> 1.6.2.5 Functional Diagrams
