61 31 133 Removing and installing/replacing AV connection socket

Special tools required:

• 00 9 323

Necessary preliminary tasks:

• Open storage compartment

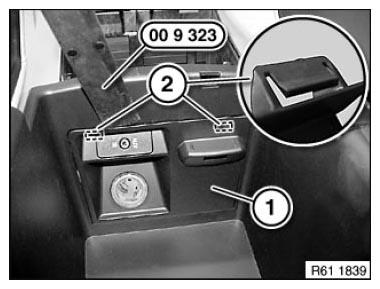

Use special tool 00 9 323 to release retaining tabs (2) and remove trim (1) from storage compartment.

Disconnect associated plug connections and remove cover (1).

Fig 1: Disconnecting Associated Plug Connection Cover

Courtesy of BMW OF NORTH AMERICA, INC.

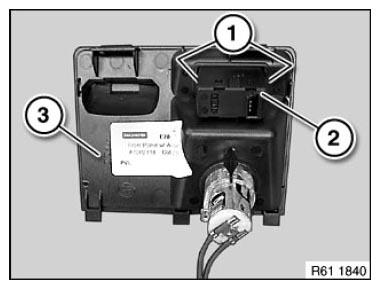

Unlock retaining tabs (1) and feed out AV connection socket (2) to front side of trim (3).

Fig 2: Identifying AV Connection Socket, Retaining Tabs And Front Side Trim

Courtesy of BMW OF NORTH AMERICA, INC.
