12 36 008 Removing and installing (replacing) hybrid current distributor
WARNING:
High-voltage system - danger to life!
WARNING:
The following points must be strictly observed prior to starting work:
- DE-ENERGIZE THE HIGH-VOLTAGE SYSTEM
- Observe SAFETY INSTRUCTIONS for handling with hybrid vehicles
Necessary preliminary tasks:

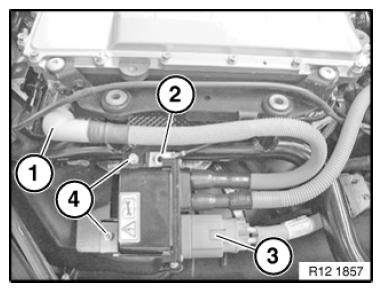

Unlock HIGH-VOLTAGE CABLE (1) AND DISCONNECT.
Release screw (2).
Tightening torque 12 36 4AZ .
Unlock HIGH-VOLTAGE CABLE (3) AND DISCONNECT.
Release screws (4).
Tightening torque 12 36 10AZ .

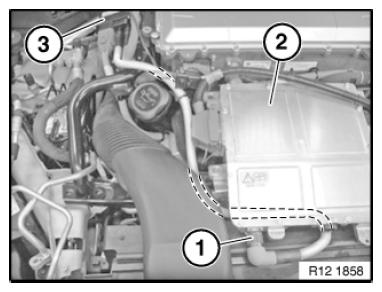

Unlock HIGH-VOLTAGE CABLE (1) AND DISCONNECT.
Feed through high-voltage cable underneath
Auxiliary Power Module (APM) (2).
Remove hybrid current distributor (3).
Installation:
Make sure cables are correctly routed without chafing.
