41 00... Body Gap Dimensions

The dimensions specified in this service information are applicable at an object temperature of 20 °C. The aim of adjustment is to achieve a uniform join.

Symmetry of the gaps between left and right sides of the vehicle has top priority.

The door gaps must not deviate between the front and rear gap by more than 1.0 mm.

No gap dimension are specified for components which cannot be adjusted.

Dimensions in mm

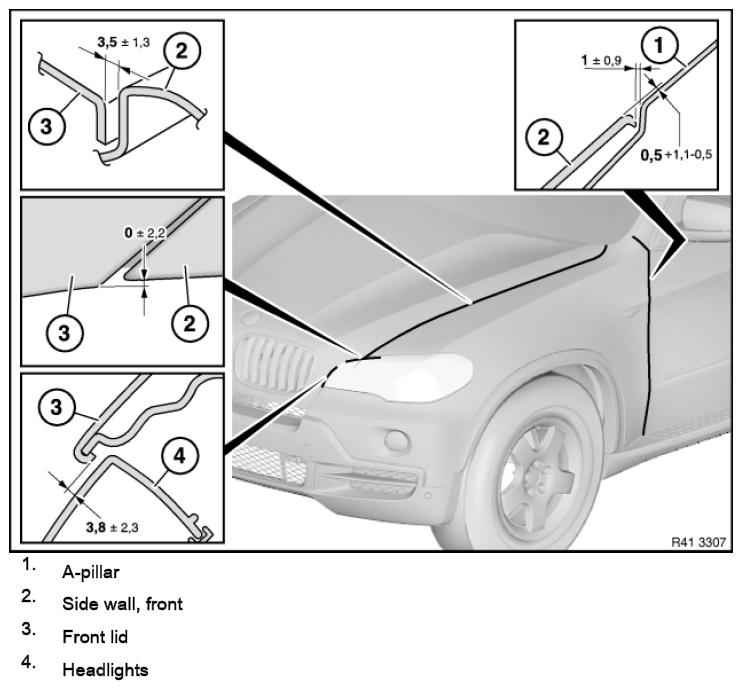

Fig 1: Headlamps, Hood, Front Fender And Front Pillar Body Gap Dimensions And Measurement Points
G08577986Courtesy of BMW OF NORTH AMERICA, INC.

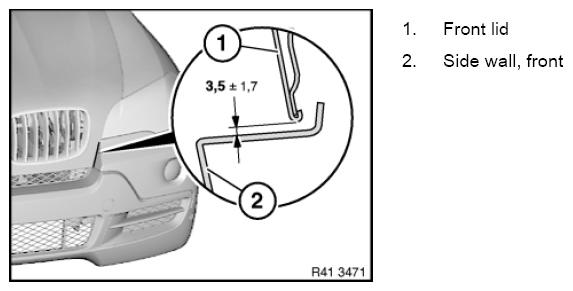

Fig 2: Hood And Front Fender Body Gap Dimensions And Measurement Points
G08577987Courtesy of BMW OF NORTH AMERICA, INC.

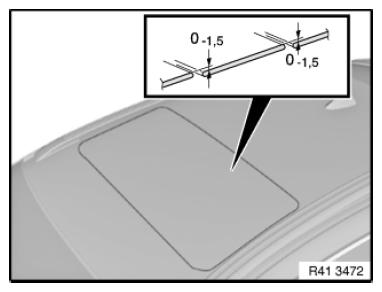

Fig 3: Roof And Moonroof Body Gap Dimensions And Measurement Points
G08577988Courtesy of BMW OF NORTH AMERICA, INC.

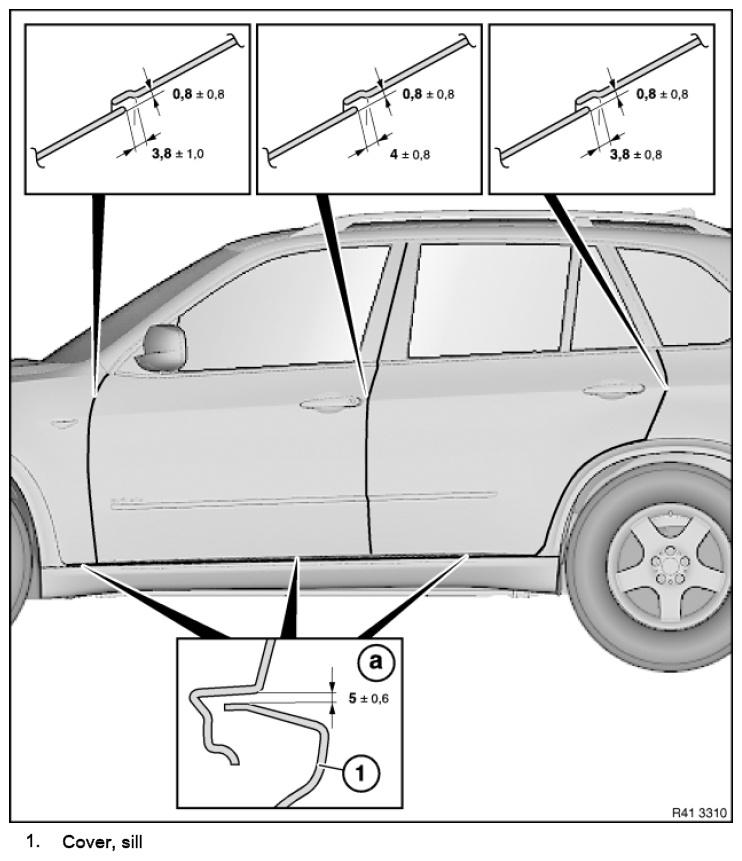

Fig 4: Front Fender, Front Door, Rear Door And Rocker Trim Panel Body Gap Dimensions And Measurement Points
G08577989Courtesy of BMW OF NORTH AMERICA, INC.

Only on version with aluminium running board:

Dimension a = 7.0±0.6 mm

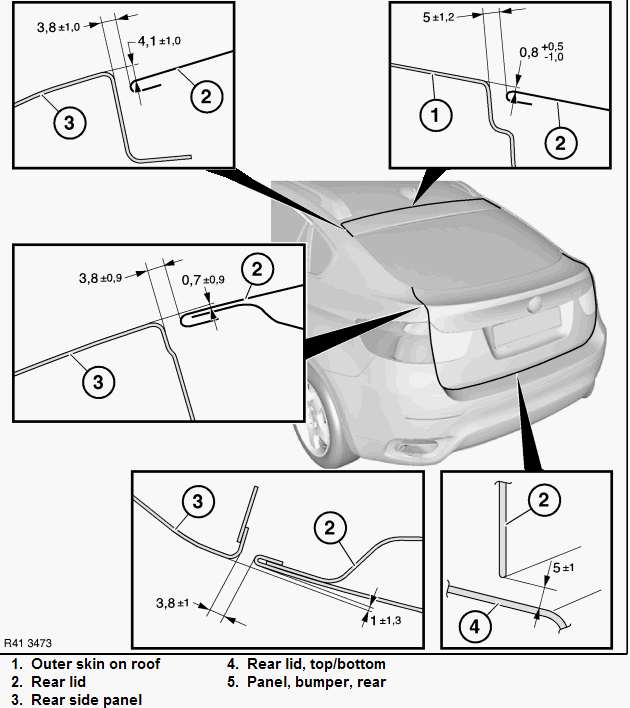

Fig 5: Roof, Liftgate, Quarter Panel And Rear Bumper Body Gap Dimensions And Measurement Points
G00530617Courtesy of BMW OF NORTH AMERICA, INC.
