12 36... Removing and installing/replacing lid on power electronics box

WARNING: High-voltage system - danger to life!

WARNING: The following points must be strictly observed prior to starting work:

Necessary preliminary tasks:

Release screws (1).

Tightening torque 12 36 5AZ .

Remove cover (2).

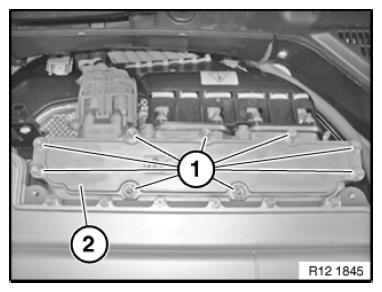

Fig 1: Identifying Cover And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace seal (1) for lid on power electronics box. Clean guide for seal on power electronics box before installing new seal.

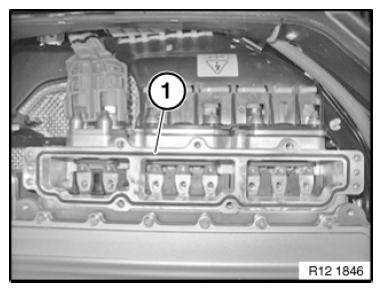

Fig 2: Identifying Power Electronics Box Seal

Courtesy of BMW OF NORTH AMERICA, INC.
