Removal & Installation

WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2004 BMW M3, 2004 BMW 330xi, 2004 BMW 330i, 2004 BMW 330Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove footwell side trim panel from left "A" pillar. See 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY . Fold floor trim panel and insulating mat to one side.
  2. Disconnect plug connection (1). Remove screw (2) and plastic nut (3). Remove lateral acceleration sensor (4). See Fig 1.
  3. To install, reverse removal procedure. Plastic nut returns to top left position. Using Diagnosis Information System (DIS) Tester, perform lateral acceleration sensor adjustment procedure under "Service Functions" menu.

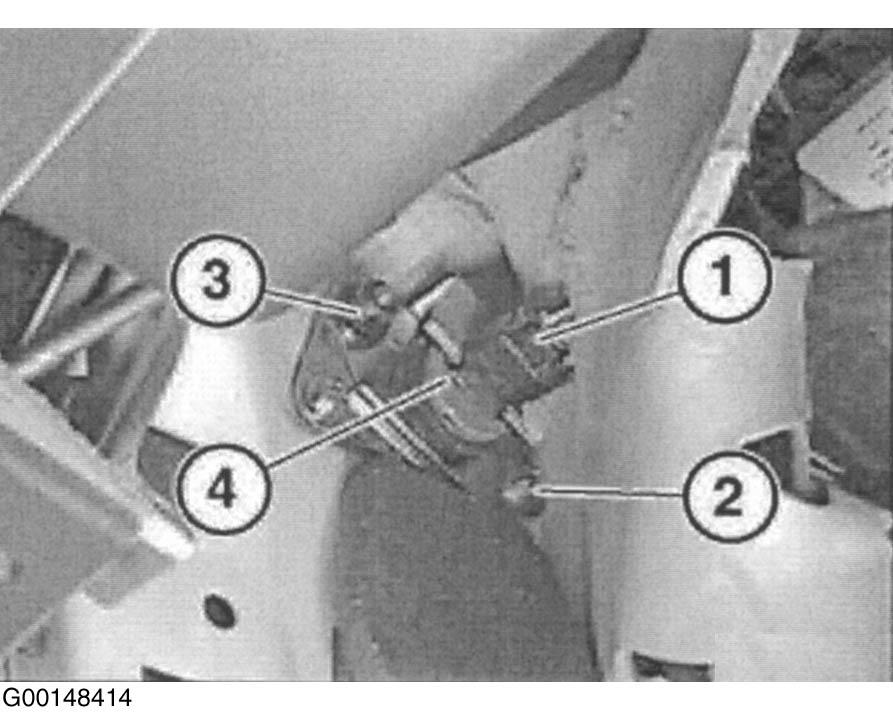

Fig 1: Removing Lateral Acceleration Sensor (DSC)
G00148414Courtesy of BMW OF NORTH AMERICA, INC.
