Removal & Installation

WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2004 BMW M3, 2004 BMW 330xi, 2004 BMW 330i, 2004 BMW 330Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Pry out expansion rivets and remove intake hood (1). See Fig 1 . Remove complete front bumper. See FRONT BUMPER (M3) , FRONT BUMPER (2-DOOR) , FRONT BUMPER (4-DOOR UP TO 9/01) or FRONT BUMPER (4-DOOR FROM 10/01) . Disconnect cooling fan electrical connector (1). See Fig 2 . Lever out expansion rivets (1) and remove fan cowl (2). See Fig 3 . Remove screws (1). Remove cooling fan (2). See Fig 4 . To install, reverse removal procedure.

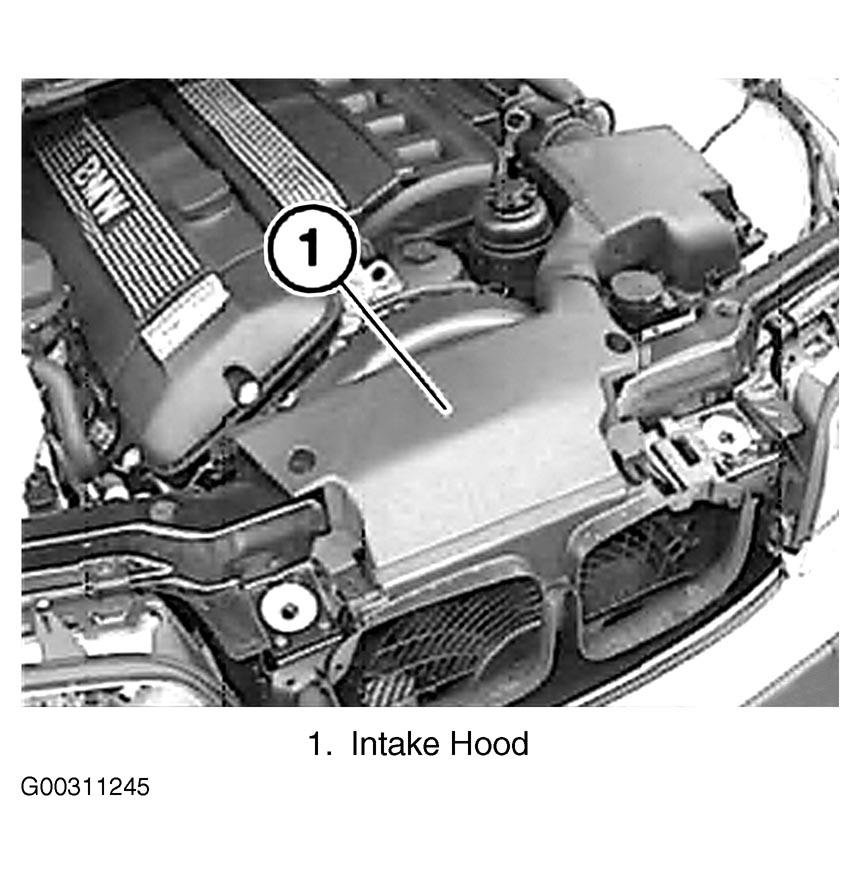

Fig 1: Removing Intake Hood

Courtesy of BMW OF NORTH AMERICA, INC.

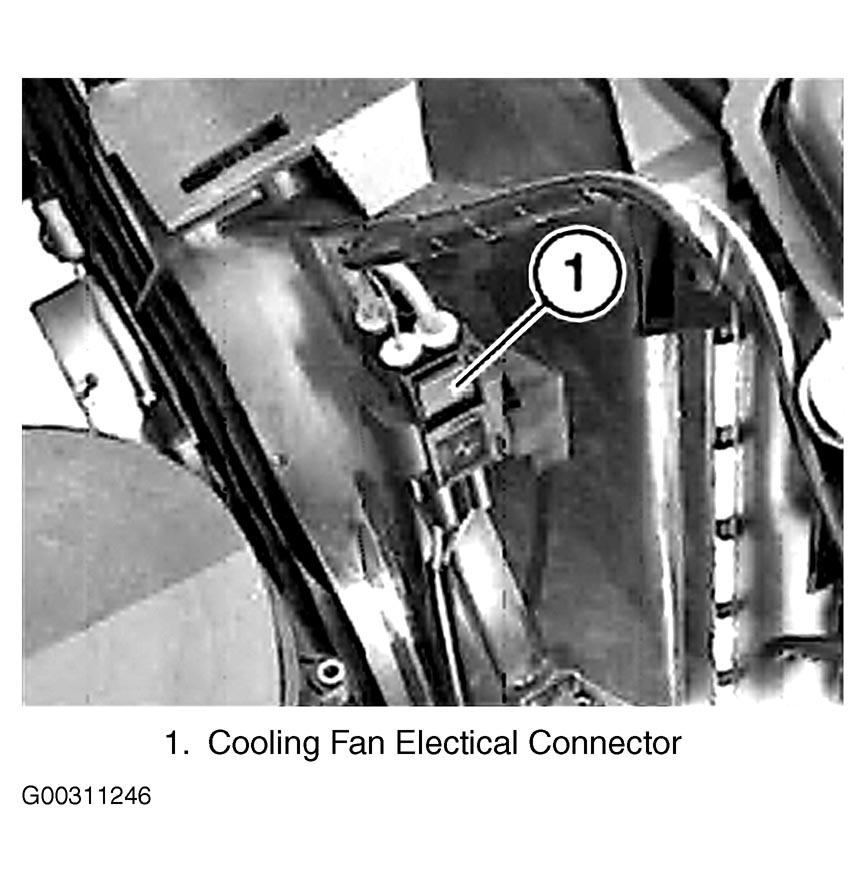

Fig 2: Disconnecting Cooling Fan Electrical Connector

Courtesy of BMW OF NORTH AMERICA, INC.

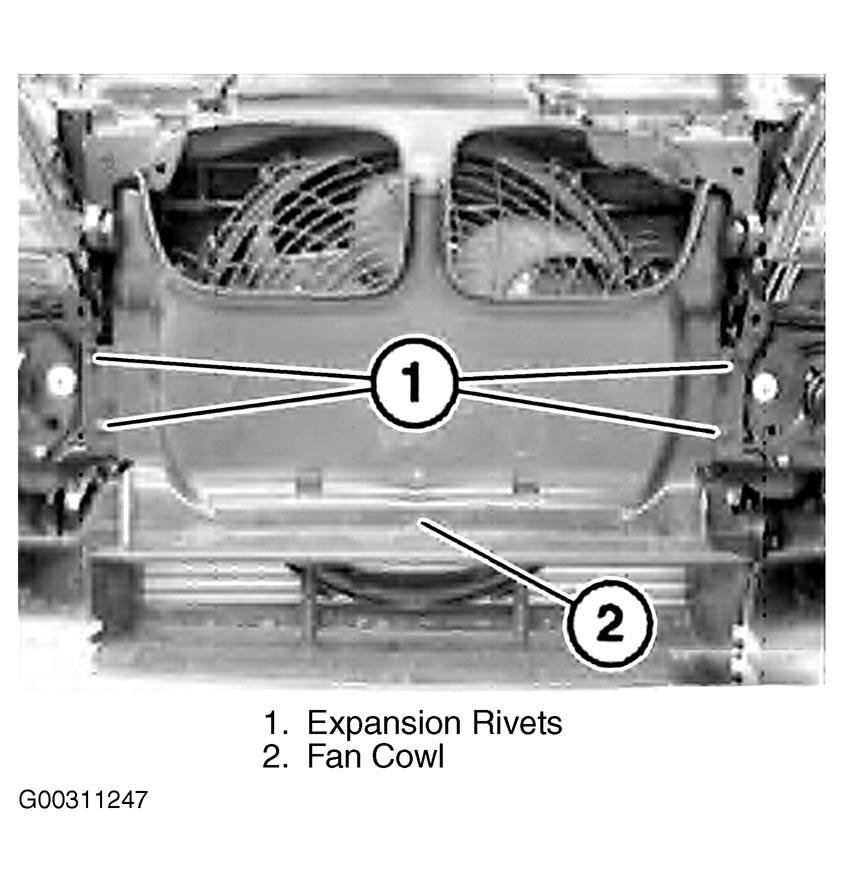

Fig 3: Removing Expansion Rivets & Fan Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

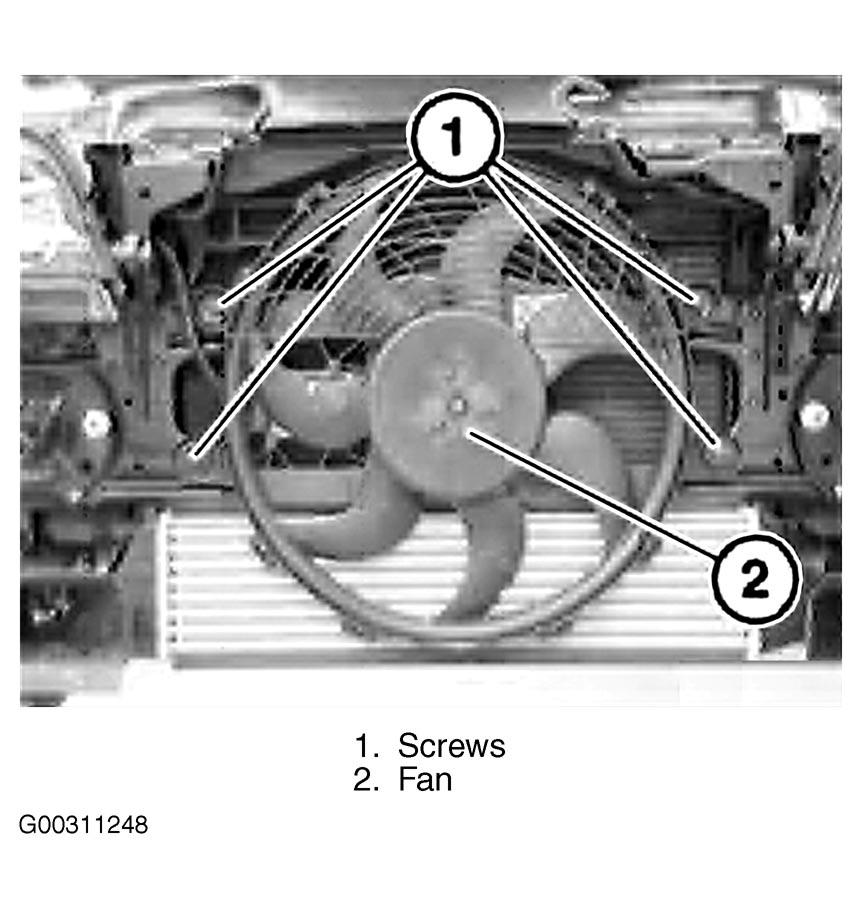

Fig 4: Removing Cooling Fan

Courtesy of BMW OF NORTH AMERICA, INC.
