1.17 Location of the Data Link Connector

Model: 750i/750Li

Fig 1: Identifying Pressure Differences In Intake Manifold

Courtesy of BMW OF NORTH AMERICA, INC.

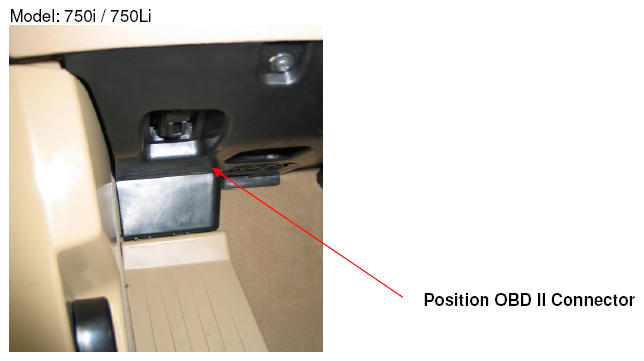

Fig 2: Identifying Position For Connecting DLC

Courtesy of BMW OF NORTH AMERICA, INC.

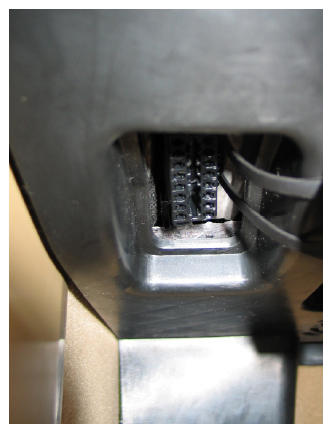

The DLC is located at the lower left side of the instrument cluster. There is a cover with the letters "OBD" on it, as shown removed above.
