11 12 040 Removing and installing all ignition coils and injector wells (N55)

Necessary preliminary work:

• Remove CYLINDER HEAD COVER .
• Remove all INJECTORS .

Release screws (1).

Tightening torque: 11 12 8AZ .

Fig 1: Identifying Cylinder Head Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Check fitting bushes (1) for damage.

Installation note:

Replace gasket (2).

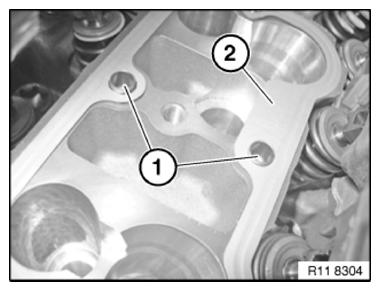

Fig 2: Identifying Cylinder Head Gasket And Fitting Bushes

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
