Long exhaust manifold primary catalytic converter (condition OK)

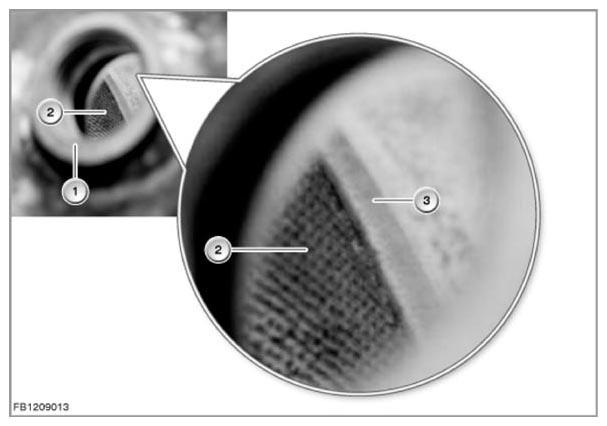

Fig 1: Identifying Long Exhaust Manifold Primary Catalytic Converter (Condition OK)
G09871934Courtesy of BMW OF NORTH AMERICA, INC.
Index Explanation
1 Fixture for control sensor
2 Catalytic converter
3 Mat for catalytic converter bearing
