Throttle-valve potentiometer characteristics

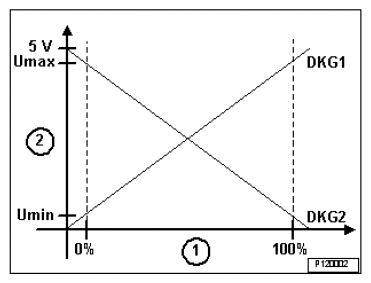

Fig 1: Throttle-Valve Potentiometer Characteristics Graph
G09912088Courtesy of BMW OF NORTH AMERICA, INC.
1 Sensor angle
2 Output voltage
DKG1 Signal path of throttle-valve potentiometer 1
DKG2 Signal path of throttle-valve potentiometer 2
