EWS oscilloscope measurement: Important

The DME/DDE must remain connected for the duration of the test-measurement routine. The CAS control unit should not be enabled. It transmits a continuous EWS immobilizer signal whenever Terminal 15 is hot.

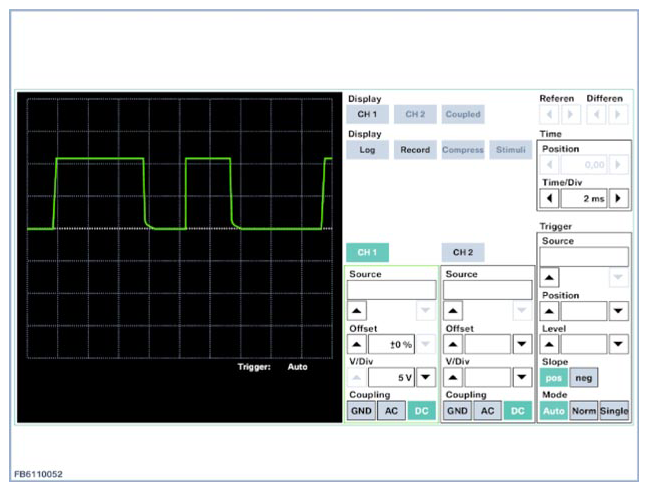

Fig 1: CAS Control Unit Signal Waveform (OK)

Courtesy of BMW OF NORTH AMERICA, INC.

Please note that the "OK" assessment relates exclusively to the data wire and the signal shape. It cannot be determined whether the transmitted code is correct.

Fig 2: CAS Control Unit Signal Waveform (Not OK)

Courtesy of BMW OF NORTH AMERICA, INC.

The above signal indicates a fault in the DME/DDE.

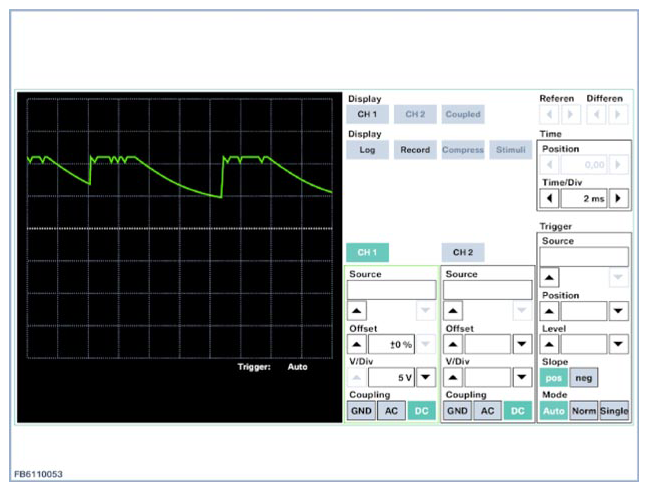

Fig 3: CAS Control Unit Fault Signal Waveform (Not OK)

Courtesy of BMW OF NORTH AMERICA, INC.

The above signal indicates a wire fault or a fault in the CAS.

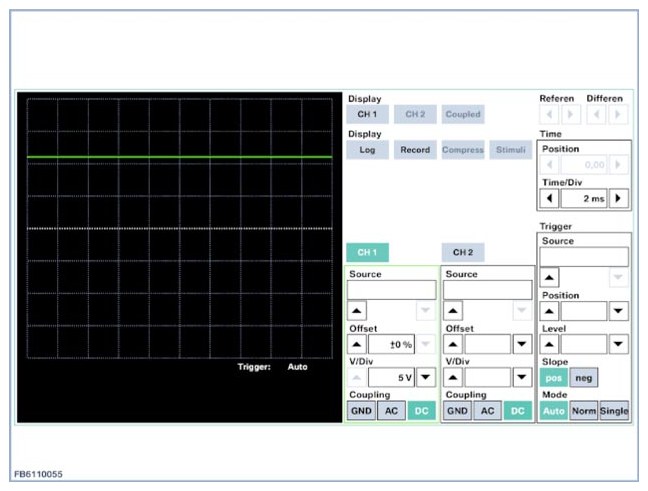

Fig 4: Display - DSC Control Unit Speed Signal Screen (Not OK)

Courtesy of BMW OF NORTH AMERICA, INC.

The above signal indicates a short circuit to positive.

Fig 5: Display - EWS Vehicle Immobilizer Screen (Not OK)

Courtesy of BMW OF NORTH AMERICA, INC.

The above signal indicates a short circuit to earth or an open wire/circuit.

Fig 6: CAS Control Unit Signal Waveform (OK)

Courtesy of BMW OF NORTH AMERICA, INC.

Please note that the "OK" assessment relates exclusively to the data wire and the signal shape. It cannot be determined whether the transmitted code is correct.

Fig 7: CAS Control Unit Signal Waveform (Not OK)

Courtesy of BMW OF NORTH AMERICA, INC.

The above signal indicates a fault in the DME/DDE.

Fig 8: Display - DSC Control Unit Speed Signal Screen (Not OK)

Courtesy of BMW OF NORTH AMERICA, INC.

The above signal indicates that the EWS vehicle immobilizer has not been enabled or that a short circuit to UBatt is present.

Fig 9: Display - EWS Vehicle Immobilizer Screen (Not OK)

Courtesy of BMW OF NORTH AMERICA, INC.

The above signal indicates a short circuit to earth or an open wire/circuit.

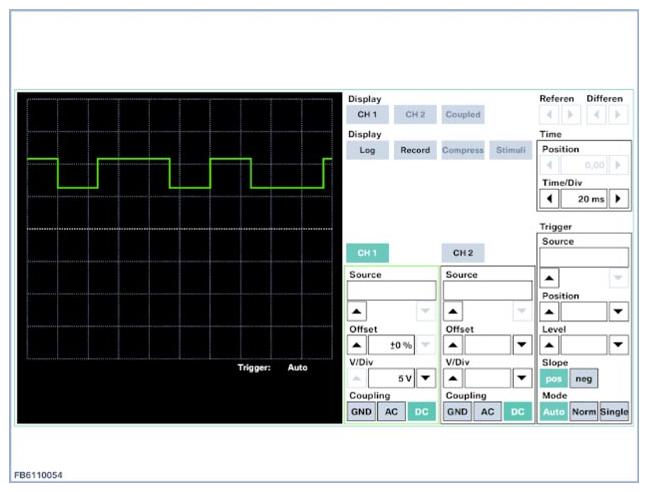

Fig 10: Display - DSC Control Unit Speed Signal Screen (OK)

Courtesy of BMW OF NORTH AMERICA, INC.

The speed signal from the DSC control unit must be a rectangular signal with amplitude Ubat.

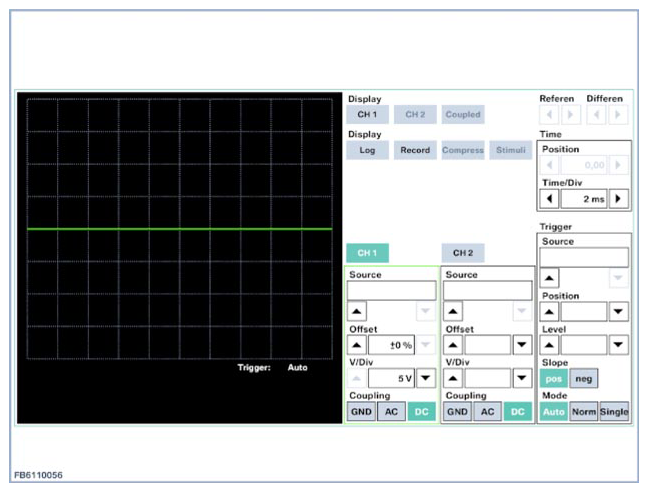

Fig 11: Display - DSC Control Unit Speed Signal Screen (Not OK)

Courtesy of BMW OF NORTH AMERICA, INC.

The above illustration indicates a short circuit to earth.

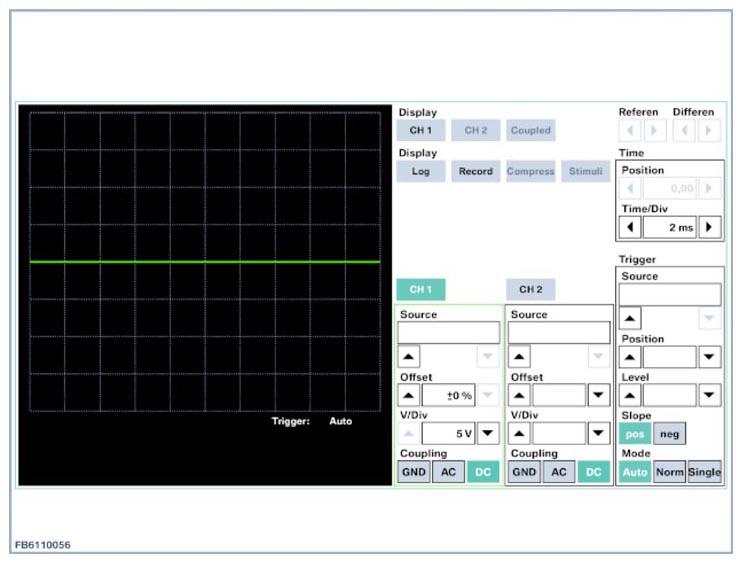

Fig 12: Display - DSC Control Unit Speed Signal Screen (Not OK)

Courtesy of BMW OF NORTH AMERICA, INC.

The above illustration indicates an open wire or a problem related to the DSC.
