System overview

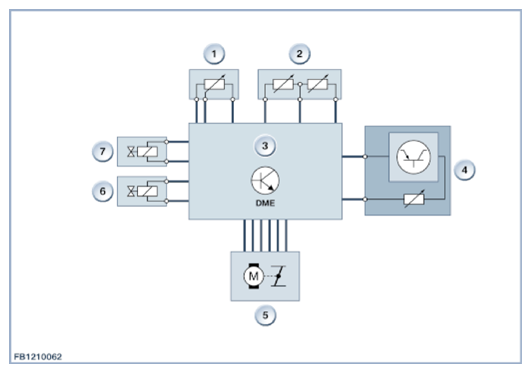

Fig 1: Overview Of DME System
G09841186Courtesy of BMW OF NORTH AMERICA, INC.
Item Explanation
1 Intake-manifold pressure sensor downstream of throttle valve
2 Intake air temperature pressure sensor
3 Digital engine electronics
4 Hot-film air mass meter
5 Electromotive throttle actuator
6 Blow-off valve
7 Pressure converter
