Intake manifold

The Digital Motor Electronics (DME) is connected to the differentiated air intake system. which means that intake air is also used to cool the Digital Motor Electronics (DME).

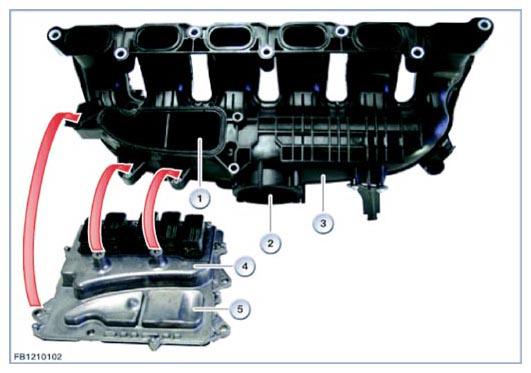

Fig 1: Identifying Intake Manifold
G09841178Courtesy of BMW OF NORTH AMERICA, INC.
Item Explanation
1 Connecting flange for cooling of Digital Motor Electronics (DME)
2 Connecting flange, throttle valve
3 Air intake system
4 Digital engine electronics
5 Cooling fins of Digital Motor Electronics (DME)
