37 14 511 Replacing front ride-height sensor

Release nut (1) and disconnect jointed rod (2).

Tightening torque 37 14 4AZ .

Unfasten screws (2).

Tightening torque 37 14 3AZ .

Remove ride-height sensor and disconnect plug connection.

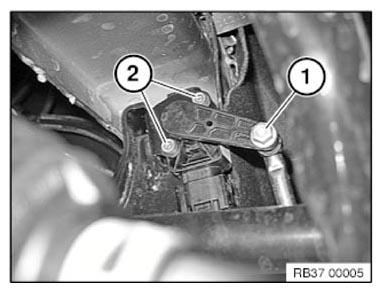

Fig 1: Identifying Ride-Height Sensor With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

• Carry out RIDE-HEIGHT ADJUSTMENT  (on vehicles with VDC).
• Check HEADLIGHT SETTING , correct if necessary.
