12 14 524 Replacing pulse sensor on exhaust camshaft (N20)

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Unlock connector (1) and remove.

Release screw (2).

Tightening torque 13 62 1AZ .

Remove pulse sensor (2).

Check gasket, renew damaged gasket.

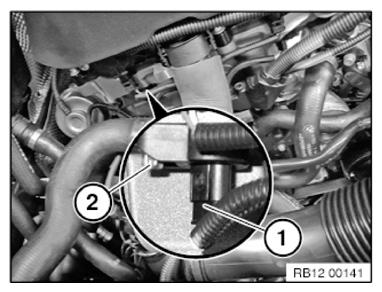

Fig 1: Identifying Pulse Sensor And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault message.
Delete fault memory.
