41 5.... Removing And Installing Door

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not damage adjoining body components.

The graphics are schematic representations and are to be applied to the relevant vehicle type.

Open door.

Release screw on connector frame.

Front door:

Tightening torque: see 4AZ in 41 51 FRONT DOORS

Rear door:

Tightening torque: see 4AZ in 41 52 REAR DOORS .

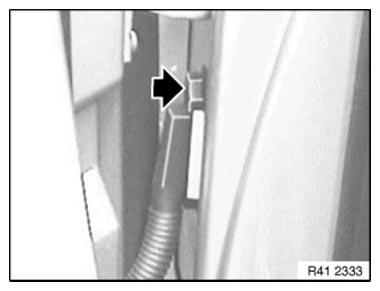

Fig 1: Locating Screw On Connector Frame

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure door against closing.

Release screw (1) on door stop.

Front door:

Tightening torque: see 3AZ in 51 21 FRONT DOOR LOCKS

Rear door:

Tightening torque: see 3AZ in 51 22 DOOR LOCKS, REAR

Open door up to limit position.

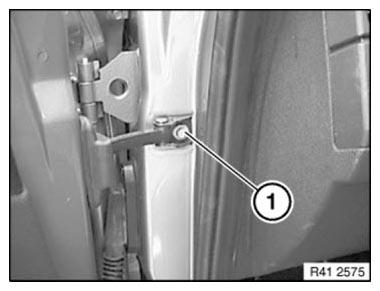

Fig 2: Identifying Screw On Door Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws between both hinge elements at top and bottom.

Front door:

Tightening torque: see 1AZ in 41 51 FRONT DOORS

Rear door:

Tightening torque: see 1AZ in 41 52 REAR DOORS

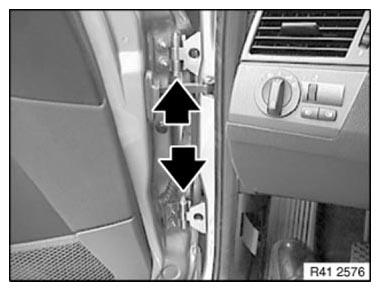

Fig 3: Locating Screws Between Both Hinge Elements At Top And Bottom

Courtesy of BMW OF NORTH AMERICA, INC.

Pull plug connection from door post, unlock by pulling out bar and detach.

Unhinge door by moving upwards and placing it on a suitable surface.

Installation:

If necessary, adjust DOOR .

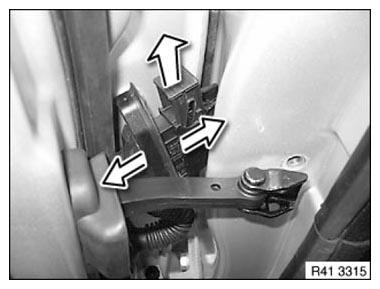

Fig 4: Pulling Plug Connection From Door Post

Courtesy of BMW OF NORTH AMERICA, INC.
