51 41 241 Removing and installing/replacing cover for armrest on driver door

Special tools required:

Necessary preliminary tasks:

Release lock washers (1) on back of door trim panel (2).

Installation:

Studs for lock washers (1) must not be damaged.

If necessary, replace faulty lock washers (1).

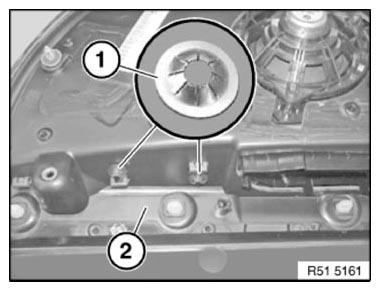

Fig 1: Identifying Door Trim Panel Lock Washers

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip trim (1) with special tool 00 9 317 in upward direction from retainers (2).

Installation:

If necessary, replace faulty retainers (2).

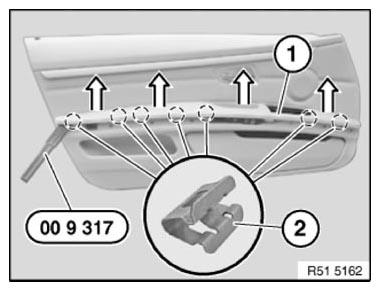

Fig 2: Removing Armrest Trim Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on trim (2) must not be damaged.

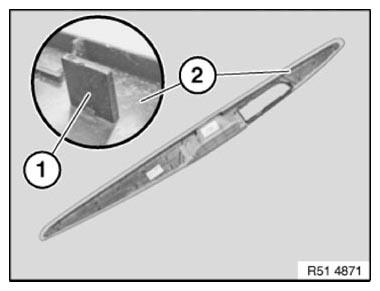

Fig 3: Identifying Armrest Trim Catches

Courtesy of BMW OF NORTH AMERICA, INC.
