51 16 361 Replacing right glovebox

Necessary preliminary tasks:

• Remove right GLOVEBOX  with housing.
• Remove FASTENER FOR GLOVEBOX .
• Remove DAMPER FOR GLOVEBOX .
• Remove GLOVEBOX LIGHT .
• If necessary, remove hotel setting switch.

If the replacement fuse chart (supplied with the new glovebox) does not match to the original fuse chart:

• Continue to use the original fuse chart.
• Dispose of the replacement fuse chart.

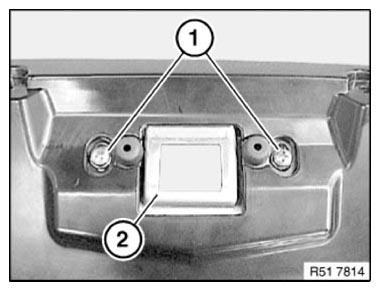

Release clips (1) and remove cover (2).

Fig 1: Identifying Clips And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all dummy platers.

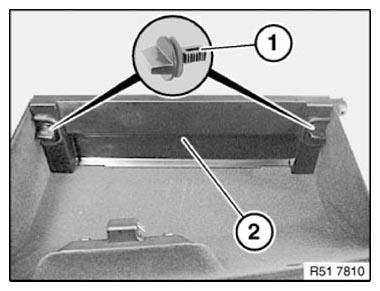

Release screws (1) and remove locking catch (2) from glovebox housing.

Fig 2: Identifying Screws And Catch From Glovebox Housing

Courtesy of BMW OF NORTH AMERICA, INC.
