22 11 110 Replacing left engine support arm (N54)

Necessary preliminary tasks:

• Secure engine in INSTALLATION POSITION
• Remove REAR UNDERBODY PROTECTION
• Remove LEFT COVER

Release heat exchanger (1) from holders and place to one side.

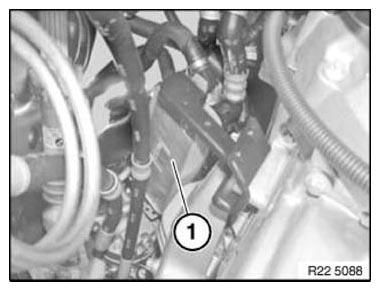

Fig 1: Identifying Heat Exchanger

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove engine support arm.

Tightening torque 22 11 3AZ .

Fig 2: Identifying Engine Support Arm Screws

Courtesy of BMW OF NORTH AMERICA, INC.
