22 11 001 Replacing right engine mount (N54)

Necessary preliminary tasks:

• Secure engine in INSTALLATION POSITION
• Remove REAR UNDERBODY PROTECTION
• Remove RIGHT COVER
• Release ENGINE SUPPORT ARM

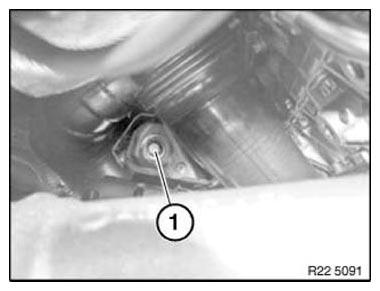

Release screw (1).

Tightening torque 22 11 2AZ .

Fig 1: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove engine mount.

Tightening torque 22 11 1AZ .

Fig 2: Identifying Engine Mount Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Rubber section (1) of engine mount must point to middle of vehicle.

Fig 3: Identifying Rubber Section Of Engine Mount

Courtesy of BMW OF NORTH AMERICA, INC.
