13 71 000 Removing and installing/replacing intake silencer housing (N55 Hybrid)

WARNING: High-voltage system - danger to life!
The following points must be strictly observed prior to starting work :

Necessary preliminary tasks:

Detach line clip (1) from intake silencer housing in upward direction.

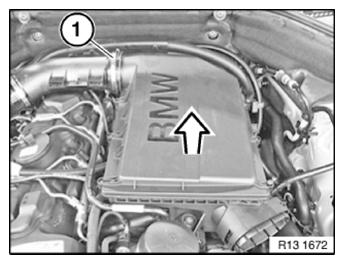

Fig 1: Identifying Intake Silencer Housing Line Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamp (1).

Tightening torque 13 71 3AZ .

Pull intake silencer housing (2) off rubber mounts in an upward direction and remove.

Fig 2: Pulling Intake Silencer Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Reassemble the vehicle.
