5.2.3. Components, installation locations and functions

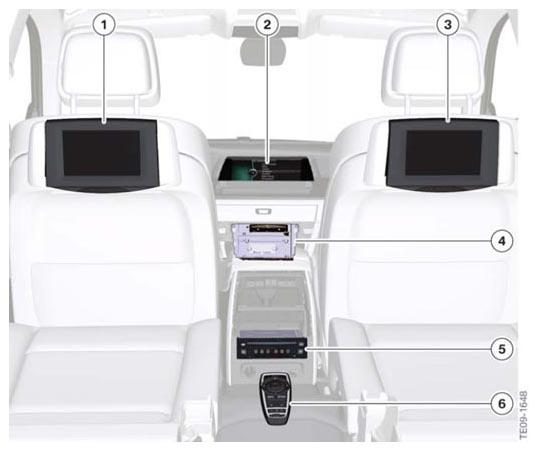

Fig 1: Identifying Rear Seat And Central Information Displays With Car Information Computer

Courtesy of BMW OF NORTH AMERICA, INC.

COMPONENTS DESCRIPTION CHART

Index	Explanation
1	Rear-seat display FD
2	Central Information Display
3	Rear-seat display FD2
4	Car Information Computer or Car Information Computer Basic
5	Rear Seat Entertainment RSE-Mid
6	Operation of the remote control system

The rear seat entertainment system (option 6FG) offers the following equipment:

Radio tuner with RDS
Sound output via: infrared headphones, wired headphones and audio speakers of the vehicle
AUX-In connection in center console (analog jack)
Connection to external equipment via AV input, e.g. video camera, games console or portable playback equipment
Operation via remote control.

Optional extras:

DVD changer (option code 696)
USB/audio interface in center console (option 6FL) for connecting media players (e.g. USB stick and Apple iPod)
In Band On Channel (IBOC) HD Radio is standard equipment and Satellite Digital Audio Radio Services (SDARS) is available as an option (SA655)
